IntelliJ project setupPermalink

For all code in monorepo + hoover.

Local setup instructions using IntelliJ IDEAPermalink

These setup instructions are aimed at developing in IntelliJ IDEA, but hopefully should be similar in Eclipse.

  1. Create a parent directory Create a directory where all the repositories, including this one, will be cloned e.g. ```bash mkdir ~/projects/EMAP ```

</details>

  1. Clone repositories This repo is now a monorepo that contains the source code from several pre-existing repos (Emap-Core Emap-Interchange Inform-DB emap-hl7-processor). ```bash cd ~/projects/EMAP git clone https://github.com/UCLH-DHCT/emap.git git clone https://github.com/inform-health-informatics/hoover.git ```

</details>

  1. Open project in IntelliJ IDEA File > New > New Project From existing sources and select this repository directory (e.g. `~/projects/EMAP/emap`). When prompted, choose "Create project from existing sources" "Unmark All" if prompted to select source files for the project.

</details>

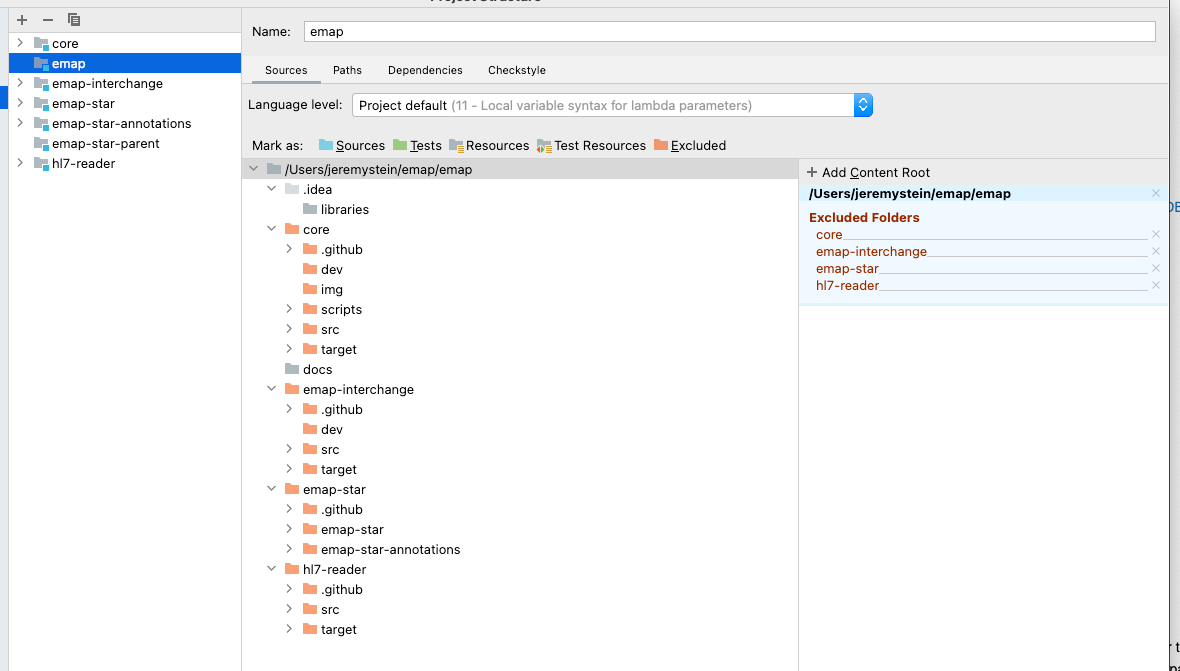

  1. Add Maven projects File > Project Structure > Modules Click the plus to add a new project and select the following `pom.xml` files - `core/pom.xml` - `emap-interchange/pom.xml` - `emap-star/pom.xml` - NOT to be confused with `emap/emap-star/emap-star/pom.xml` (which contains the Hibernate entity definitions, but requires the annotation preprocessor)! - `hl7-reader/pom.xml` - `../hoover/pom.xml` (optional for running within UCLH, outside this repo) If you add one by mistake, you can delete the project ![project root module](/_pages/docs/emap/dev/img/project-root-config.png)

</details>

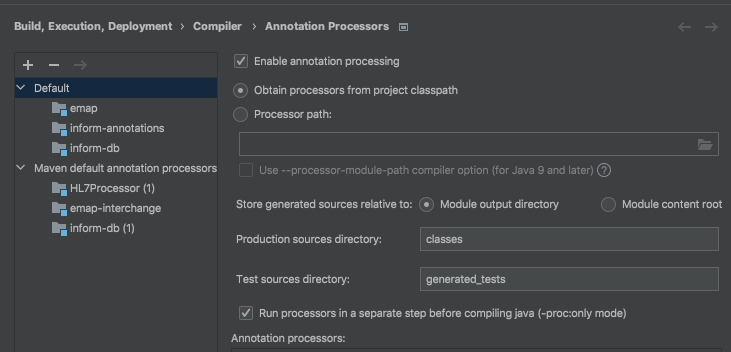

  1. Allow annotation processing Go to File > Settings > and searching for `processor` - Check `enable annotation preprocessing` - Change the production sources directory to `classes` as below ![preprocessor](/_pages/docs/emap/dev/img/annotation_processor.png)

</details>

  1. Reload Maven projects In the `Maven` pane (which should now have appeared on the top right of the IDE), click **Reimport all maven projects** or **Reload**

</details>

  1. Point to correct Java versions There are several places in IntelliJ that relate to the java version used. These settings are sometimes correctly set from the maven config but you may want to double check in case of errors. `Project Structure | Project Settings | Project` (SDK to use and default language level) `Project Structure | Project Settings | Modules` (per module language levels) `Preferences | Build, Execution, Deployment | Compiler | Java Compiler` (Project bytecode version and per-module bytecode version) `Preferences | Build, Execution, Deployment | Build Tools | Maven | Importing` (JDK for importer) At the time of writing, hoover uses java 11 and all other modules use java 17.

</details>

  1. Add lombok and checkstyle plugins Go to File > Settings > search for plugins, search lombok and checkstyle and install them

</details>

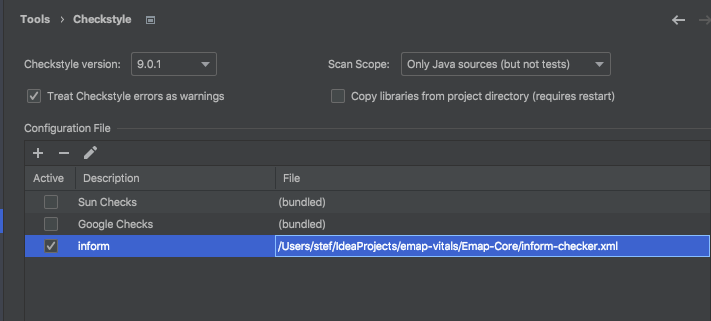

  1. Setup checkstyle To allow checkstyle to be run go to File > settings > search for checkstyle - Set the version of checkstyle to the latest version - Click on the `+` to add a new checkstyle configuration ![checkstyle_setup](/_pages/docs/emap/dev/img/checkstyle_setup.png) - Make a description and select the checkstyle file `emap/emap-checker.xml`. When done, in the bottom panel of the IntelliJ select the inform rules to make the new configuration active. ![checkstyle](/_pages/docs/emap/dev/img/checkstyle.png)

</details>

Running unit testsPermalink

Most repositories include unit tests in <repo-name>/src/test/java. You will probably want to set up a separate run config for each component so you can just run the tests that are relevant.

The following modules can be set up in the same, very simple way:

  • core
  • hl7-reader
  • emap-star

Others require some “fake” services which run in docker containers.

Setting up modules that don’t require docker containers to runPermalink

Creating a configuration as follows:

  • Run > Edit Configurations

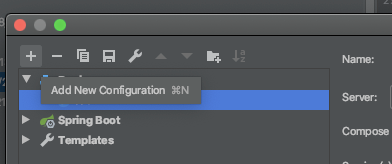

  • Click on the + at the top left-hand side of the window new run
  • Select Junit from the drop down
    • Set Test kind to All in package
    • Set the package to uk.ac.ucl.rits.inform.datasinks.emapstar. Or set the module to e.g. core and the package to uk.ac.ucl.rits.inform
    • You may also want to set logging level to TRACE for our classes by defining the environmental variable: LOGGING_LEVEL_UK_AC_UCL=TRACE

You can just copy this configuration for the other modules, changing the module name each time.

Compiling and running testsPermalink

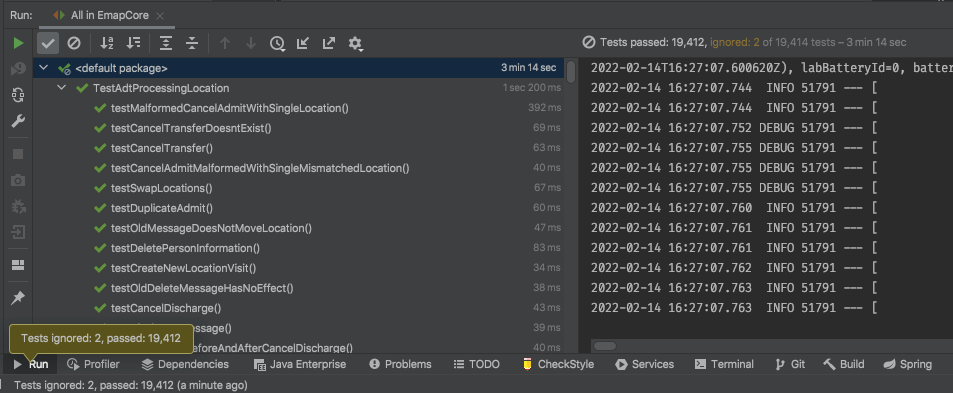

Go to Run > Run, which should create a window in the bottom pane tests pass

Expand here if this gives you a compilation error This may be fixable like so: - Go to the maven pane on the right-hand side and run the Lifecycle `clean` goal for: `Emap Star Annotations` and `Emap Star Database Definition`. Then `clean` and then `install` on `Emap Star Schema` - After this then select the `Reload All Maven Projects` icon at the top of the same pane as shown below ![reload](/_pages/docs/emap/dev/img/reload_maven.png) - You may also need to run `Generate Sources and Update Folders For All Projects`

Tests can also be run individually by clicking the play button on a class within an IDE editor window.

For components which require a docker container to run testsPermalink

Don’t delete the fakeuds definition because it’s needed for emap-in-a-box, and it will be needed if we bring the non-proprietary bits of hoover into this repo.
